Documentation

RFID EdgeClient document can be found from application frontend right top corner.

Or dropdown menu at the top pf the RFID EdgeClient application.

Configuring device

1. Download and install RFID Edge Client and Mosquito applications from device App center
    - Ensure that both application is running


2. In EdgeClient application

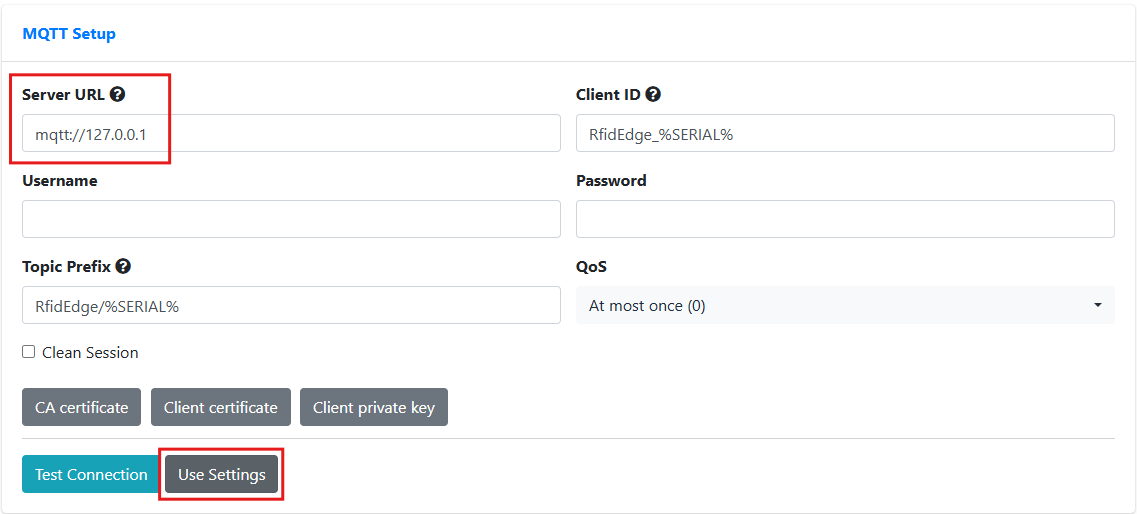

   - Set 'Server URL' to your host url
   Press ‘Use Settings’ to save your settings

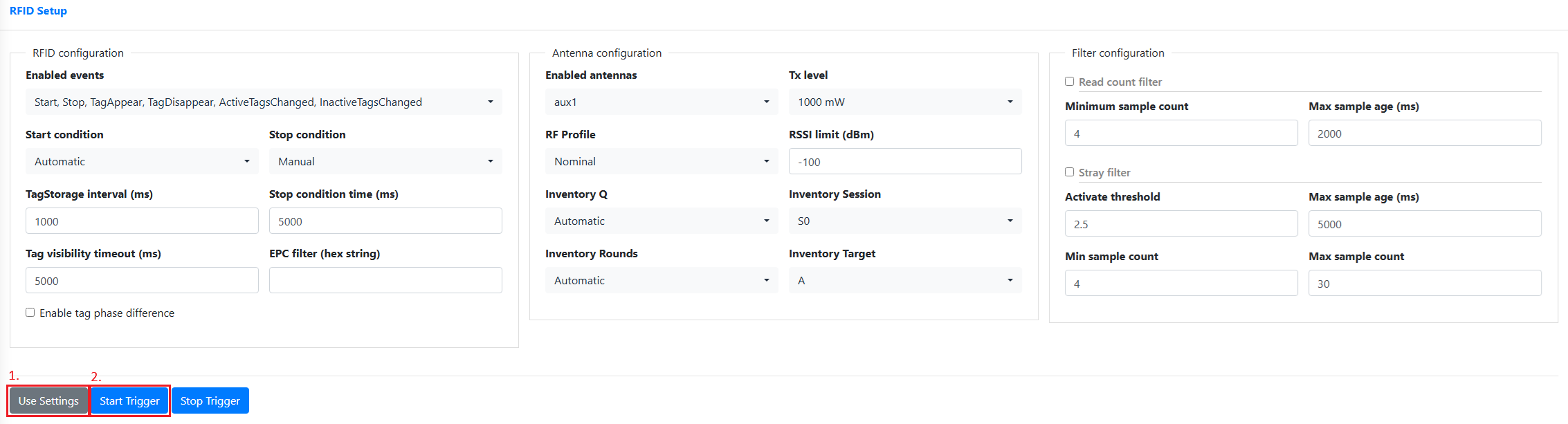

3. Setup RFID setup in RFID configuration


   1. Save RFID settings
   - Press Use Settings from RFID setup

   2. RFID trigger
   - Press Start trigger from RFID setup to start reading

Test your MQTT connection

Use example MQTT explorer to test your connection.
https://mqtt-explorer.com/

Download & install MQTT explorer to you PC

Setup MQTT explorer

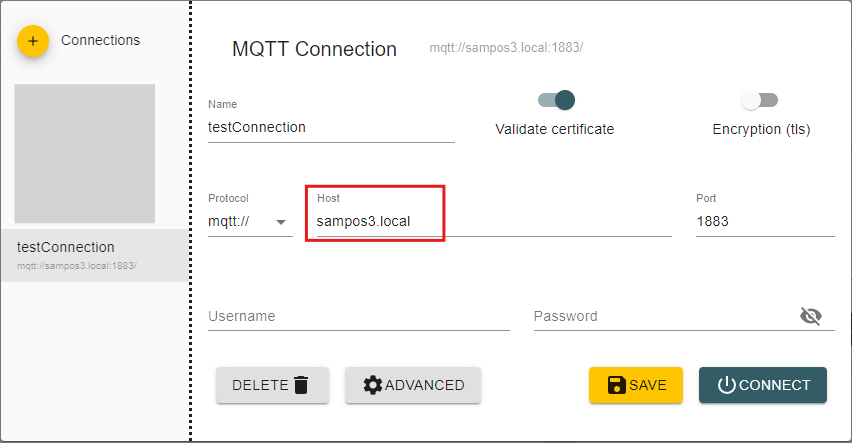

1. Use the device address as the MQTT broker address or add the same host address as the EdgeClient


2. Click Advanced and configure topic

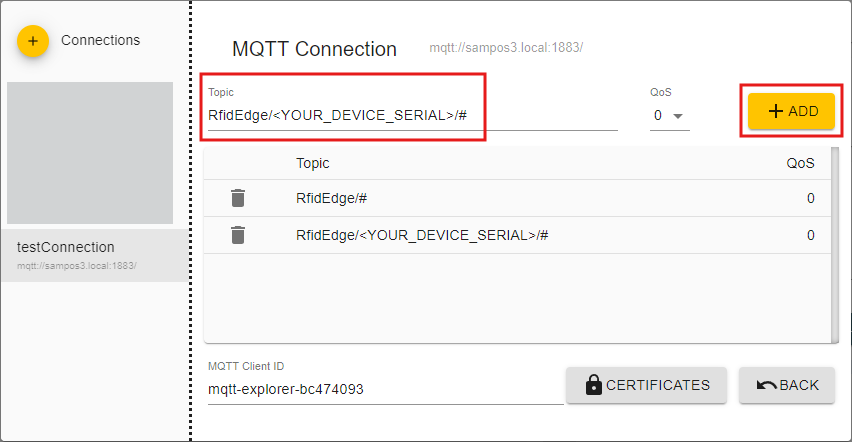

   2.1 Add topic and replace <YOUR_DEVICE_SERIAL> with your device serial number. Serail number can be found from device WebUI (Dashboard)

   2.2 Remeber to click Add to setup the topic

   2.3 Return back to main page

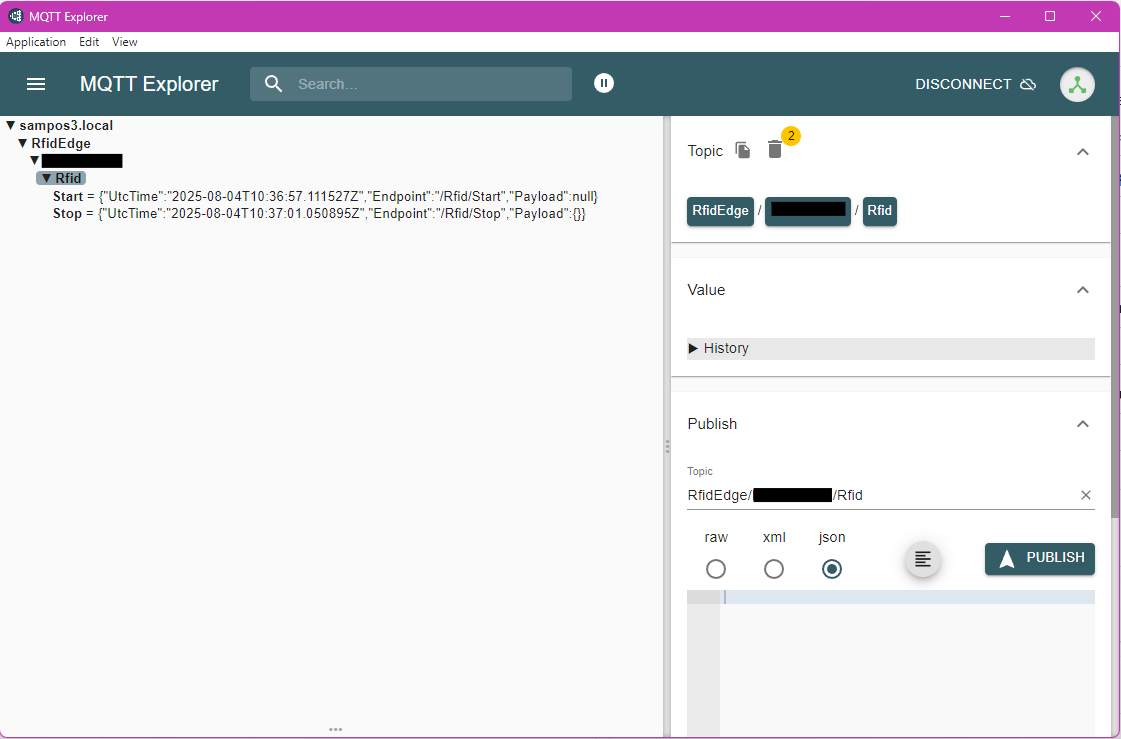

3. From MQTT explorer main page click Connect and see results from topic
