UHF RFID Antenna comparison : Nordic ID

UHF RFID Antenna comparison Print

Modified on: Thu, 13 Jun, 2024 at 1:13 PM

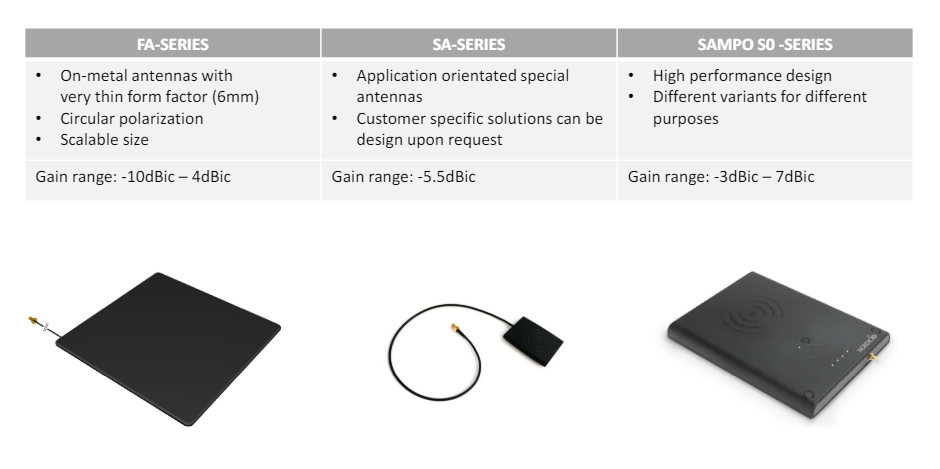

ANTENNA SERIES
FA, SA, Sampo S0

Parameters: 3D Radiation patterns, Gain, Polarization, Directive, Works on metal, Beam width, Front-to-back ratio

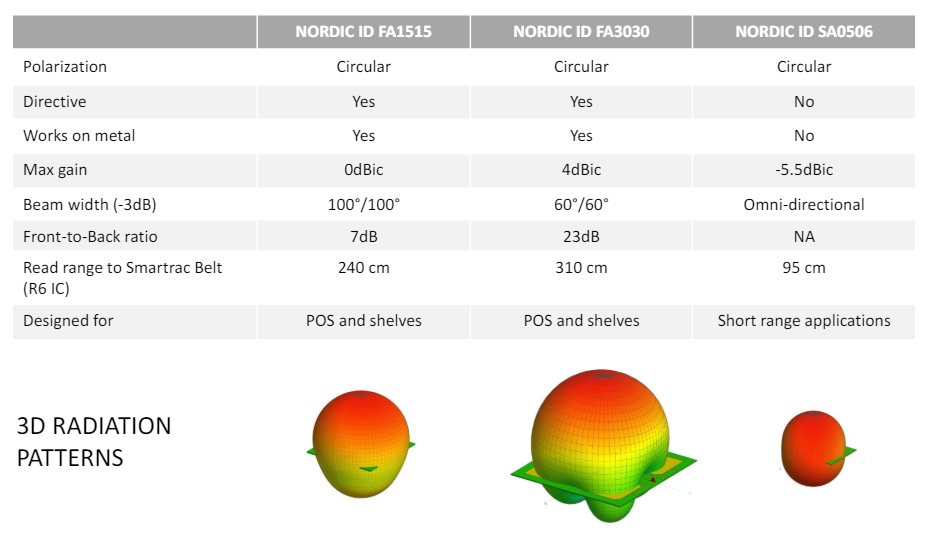

PARAMETERS OF FA- AND SA-ANTENNAS
FA1515, FA3030, SA0506

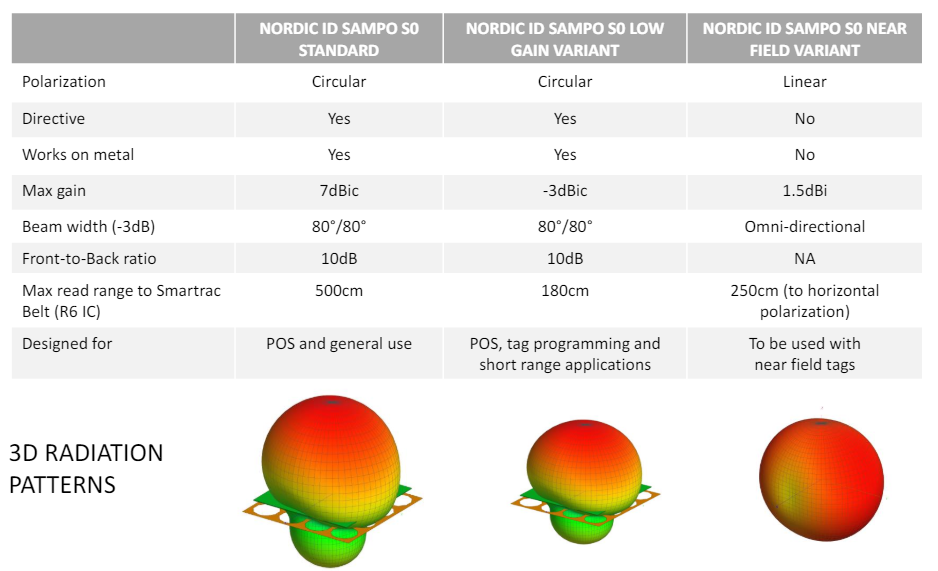

PARAMETERS OF NORDIC ID SAMPO S0 ANTENNAS

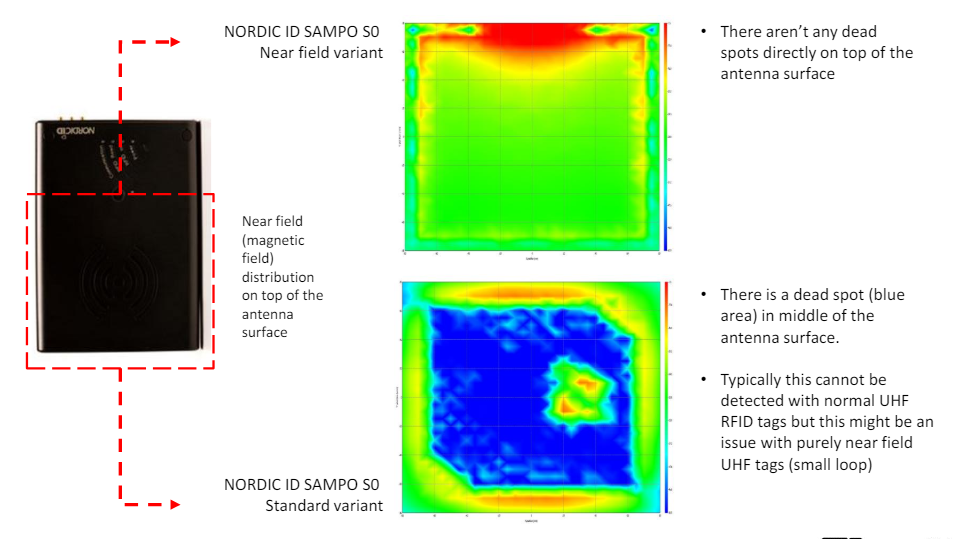

Near field behavior: NORDIC ID SAMPO S0 STANDARD VS NEAR FIELD
