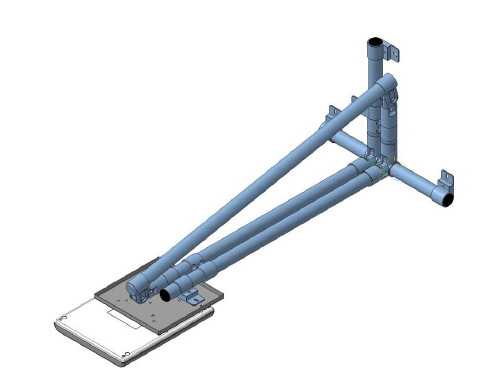

MEG00005_Wall_support
Wall support solution for Nordic ID RFID-readers and antennas. Wall support structure can be attached to the wall by using steel anchors or wall plugs.
Maximum dimensions (without reader or antenna):
Height: 303,5 mm
Width: 356 mm
Depth: 741 mm

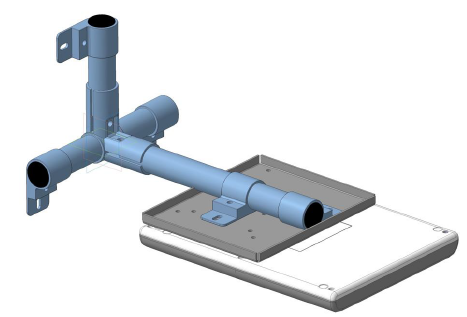

MEG00012_Wall-Support_light_V2
Wall support solution for Nordic ID RFID-readers and antennas. Wall support structure can be attached to the wall by using steel anchors or wall plugs.
Maximum dimensions (without reader or antenna):
Height: 303,5 mm
Width: 356 mm
Depth: 741 mm

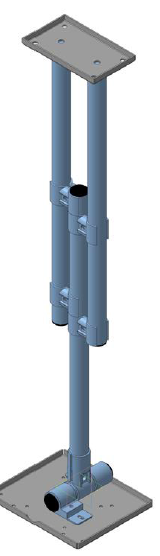

MEG00024_VESA_75_100_roof_ mount
Roof support solution for Nordic ID RFID-readers and antennas. Roof support structure can be attached to the roof by using steel anchors or wall plugs. Structure is also adjustable.
Maximum dimensions (without reader or antenna):
Height: 580 - 880 mm
Width: 186 mm
Depth: 156 mm
MEM00271_GA30_mounting_plate
Mounting plate for Nordic ID GA30 antenna. Mounting plate is needed for attaching antenna/reader to different mounting solutions.
Maximum dimensions (without reader or antenna):
Height: 30 mm
Width: 220 mm
Depth: 220 mm
