UHF RFID IDENTIFICATION
ISO Compliance Standards
ISO 18000-63 (EPC Class 1Gen2v2)
Frequency
ETSI 865.6-867.6 MHz or FCC/IC 902-928 MHz
RF Radiated Power
+32dBm (+30dBm in FCC region)
Maximum Receive Sensitivity
-87dBm
Reading Speed
Up to 1000 tags per second
External Antenna Port
4 ports RP-SMA female
PLATFORM
Central Processing Unit (CPU)
Quad-core A7 1.1GHz
Operating System
Linux
Internal Memory Capacity
1GB RAM, 8GB Flash
USER INTERFACE
Device Indicators

4 LEDs indicating the enabled antennas, Connection LED,

Application LED, Power LED, RF LED

CONNECTIVITY
Connectivity Options
GPIO Industrial mini IO port, USB-C, USB Host, Ethernet
POWER
Power Supply
PoE 802.3at
Power Requirements
Max 25.5 W. 4W idle
SIZE AND WEIGHT

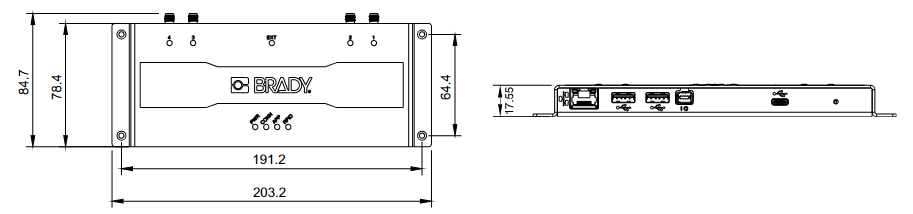

Dimensions203.2 mm (W) x 17.55 mm (H) x 78.49 mm (D)
Weight (kg)
0.306 kg
ENVIRONMENT
Ingress Protection Rating
IP20
Operating Temperature-20°C - 55°C
Storage Temperature
-40°C - 85°C
Mounting Type
4 Screws (not included)
SOFTWARE INTERFACE
Data Management
Nordic ID RADEA
Firmware Updates
Via Web management UI and the RESTful service
Management Interface
Web Management UI and SSH for developers
IP Address Configuration
IPv4 DHCP, Static IP
API Support
NUR API for RFID and RESTful service to access reader configuration
Software Development

Application can be written with modern programming

languages. Compatible with existing Nordic ID fixed readers.

Ready-to-use Nordic ID NUR API that provides full control

over the reader


Security
TLS v1.3


Product options


Order Ref.
Description
B-FR22LITE-RDR-EU
FR22 Lite Reader



Accessories


Order Ref.
Description
FR22-PSU-cord-EU
Power Supply FR22 EU
FR22-PSU-cord-UK
Power Supply FR22 UK
FR22-PSU-cord-US
Power Supply FR22 US
FR22-ANT-Cable-1m
FR22 antenna cable 1 m SMA-male - RP-SMA
FR22-ANT-Cable-3m
FR22 antenna cable 3 m SMA-male - RP-SMA
FR22-ANT-Cable-5m
FR22 antenna cable 5 m SMA-male - RP-SMA
FR22-ANT-Cable-10m
FR22 antenna cable 10 m SMA-male - RP-SMA
FR22-ANT-GA30-8cm
Antenna cable FR22 mounted on GA30 8cm
B-GA30-ANT
Brady GA30 antenna
B-GA30-Backcvr-kit
Brady GA30 back cover kit
