This section includes all the hardware configuration parameters related to the IRX200 device.


GPIO


GPIO settings are Web UI and device API adjustable.

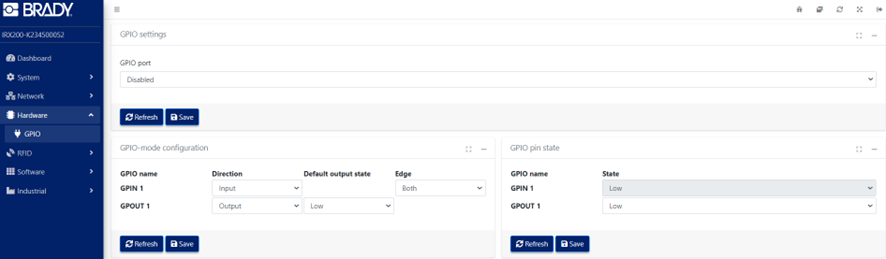

GPIO settings screen
  • GPIO settings
Enable or disable from dropdown
  • GPIO mode configuration
Choose direction for each pin, the default output state for IN pin and edge for OUT pin.
  • GPIO pin state
Choose state Low, High or for each pin from dropdown.
