CERTIFICATES


Install your own Install web server certificates to avoid security warnings and increase the security of the network.


Security warning on the web navigation bar

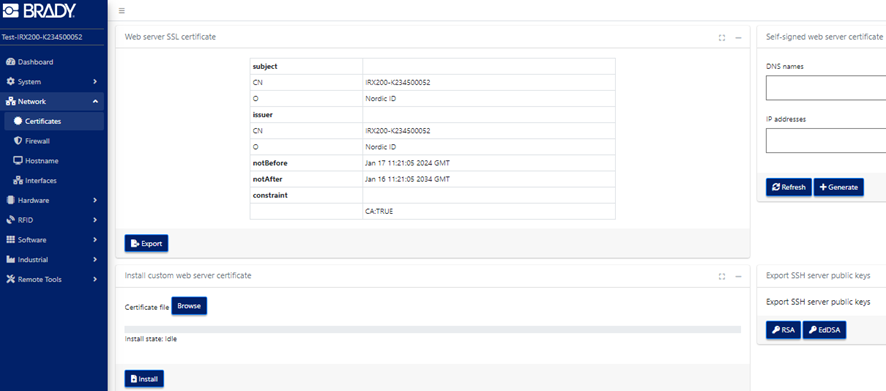

certification view
  • Web server SSL certificate
IRX200's SLL certificate information
  • Self-signed web server certificate
Add DNS names and IP addresses
  • Install custom web server certificate
Browse and install certificate from file
  • Export SSH server public keys
Make public keys available



FIREWALL


Regulate or block the traffic that passes to and from and the system following set iptables rules.

Note that iptables rules are transitory, they need to be saved for them to persist after reboot.


Firewall view
  • Firewall settings
Control access to Web UI and SSH access, and manage support’s VPN access from dropdowns. Regulate or block incoming or outgoing network traffic. For example, if the user wants to block connections from a specific IP address “198.168.156.24”, they add into input rules the following command: -s 198.168.156.24 -j DROP

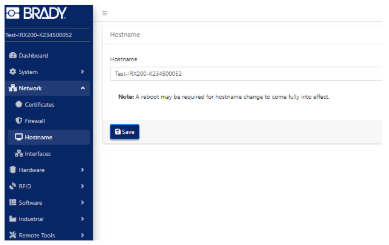

HOSTNAME


Change hostname for the IRX200 device.


  • Hostname
Type the hostname the reader can be reached with along with it’s IP address.


INTERFACES


Network interfaces and IP configuration.

In normal mode, the USB is enabled, making the device accessible via USB.

When in industrial mode the ethernet interface is disabled.

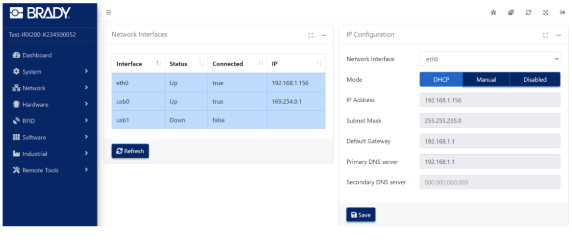

Interface tab from Network settings in normal mode
  • Network interfaces
Available interfaces, their status, connection status and IP.
  • IP Configuration
Configure network interfaces. Choose interface from dropdown. Change interface parameters.
