The Nordic ID FR22 needs external RFID antennas to operate. It can work with any standard UHF RFID antenna, but we suggest using Nordic ID RAIN RFID antennas. Nordic ID antenna portfolio includes two exclusive antennas for Nordic ID FR22:
- Nordic ID GA30, a general-purpose antenna with high gain and IP rating, that allows the Nordic ID FR22 to be mounted behind it to create an integrated RFID reader+antenna solution.
- Nordic ID BFA, a beam-forming antenna for special applications that require reading tags in large areas or detection of movement and direction. This antenna is connected to the Nordic ID Extension Port in Nordic ID FR22 instead of SMA ports.
Model and quantity (up to 4 without multiplexer or up to 16 with multiplexer) of antennas depend on the use case.
| CODE | DESCRIPTION |
| ACN00208* | Nordic ID FR22 16 port multiplexer |
| ACN00214 | Power supply for Nordic ID FR22, POE 30W with power cord EU |
| ACN00215 | Power supply for Nordic ID FR22, POE 30W with power cord UK |
| ACN00216 | Power supply for Nordic ID FR22, POE 30W with power cord US |
| EMA00017 | Active GPS antenna |
| ANG00001 | Nordic ID GA30 antenna |
| ACN00224* | Nordic ID BFA antenna, 868 |
| ACN00225* | Nordic ID BFA antenna, 915 |
Nordic ID 16-port multiplexer
Nordic ID BFA Antenna
* These modules (16-port multiplexer and BFA antenna) can be purchased as accessories (product code ACN....) or preassembled together with the Nordic ID FR22 (product code NPK....). When delivered as accessories, they include the required screws to be attached to a Nordic ID FR22.
| CODE | DESCRIPTION |
| CWH00098 | Nordic ID FR22 external antenna cable (length 1m, SMA-male 90º to RP-SMA) |
| CWH00099 | Nordic ID FR22 external antenna cable (length 3m, SMA-male 90º to RP-SMA) |
| CWH00100 | Nordic ID FR22 external antenna cable (length 5m, SMA-male 90º to RP-SMA) |
| CWH00101 | Nordic ID FR22 external antenna cable (length 10m, SMA-male 90º to RP-SMA) |
| CWH00102 | Nordic ID antenna cable for FR22 mounted on GA30 (length 8cm) |
Available kits
The Nordic ID FR22 can be delivered with preassembled extension modules, as a fully enhanced device for specific use cases, such as applications. For example, if you need a 16-ports RFID reader (as the old Nordic ID AR82 was), you can order the NPK00007 kit, which includes a Nordic ID FR22 reader with assembled 16-port multiplexer. Or if you need a wide area RFID reader (as the old Nordic ID AR85 was), you can order the NPK00004 kit, which includes a Nordic ID FR22 reader assembled on the back plate of a BFA antenna.
| CODE | DESCRIPTION |
| NPK00003 | Nordic ID FR22 IoT Edge Gateway + BFA 915 |
| NPK00004 | Nordic ID FR22 IoT Edge Gateway + BFA 868 |
| NPK00005 | Nordic ID FR22 IoT Edge Gateway LTE + BFA 915 |
| NPK00006 | Nordic ID FR22 IoT Edge Gateway LTE + BFA 868 |
| NPK00007 | Nordic ID FR22 IoT Edge Gateway 16 ports |
| NPK00008 | Nordic ID FR22 IoT Edge Gateway LTE 16 ports |

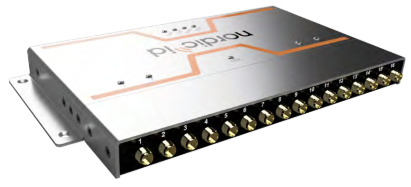

| Nordic ID FR22 with preassembled 16-port multiplexer(NPK00007/8) |

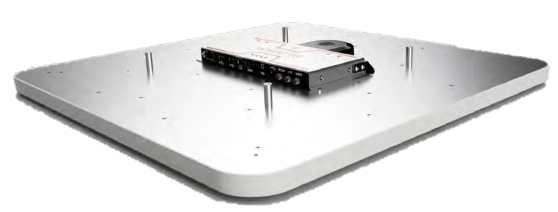

| Nordic ID FR22 assembled on Nordic ID BFA antenna (NPK00003-6) |
Package content
Nordic ID FR22 package contains following items
- Nordic ID FR22
- WLAN/Bluetooth antenna
- LTE antenna (only in LTE variant)
- Additional product label with product information (keep this safe)
| NOTE! Power supply and GPS antenna not included |
