There are two ways to attach the host device to the EXA81: Quad Lock and screw fastening.

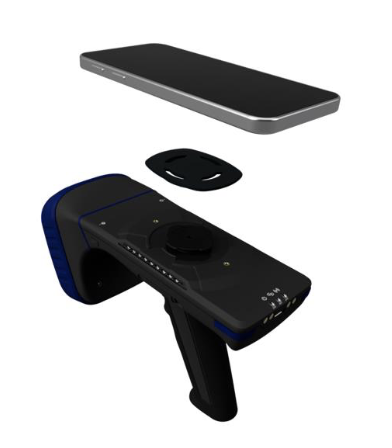

QUAD LOCK FASTENING

Quad Lock system provides strong and secure fastening and is suitable for various host devices. Visit

Quad Lock web page for more information about different adapters.

Fastening with Quad Lock is quick and easy. First, the Quad Lock adapter is attached to the host device,

then the host device can be attached to the Brady EXA81 by turning and locking the Quad Lock fastening

system.

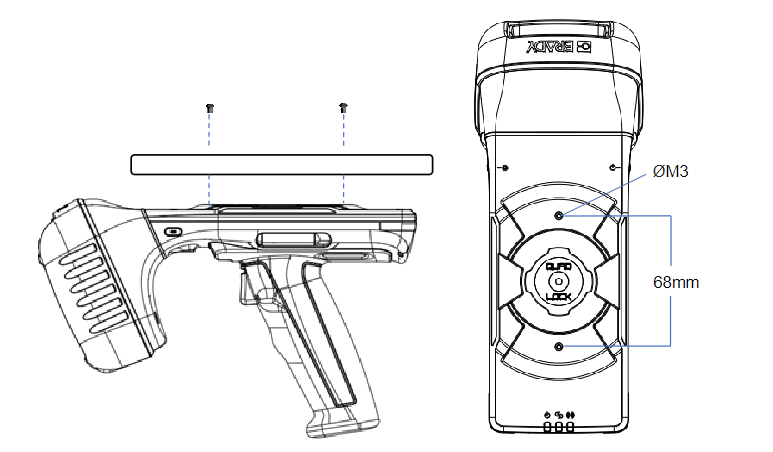

SCREW FASTENING

This option requires a custom case or cover for the host device. The case or cover is screwed on to the

Brady EXA81. The distance between the screw holes is 68mm and the screw thread size is M3.
