The Nordic ID EXA51e provides three different fastening methods for host devices. The fastening methods are Quad Lock, magnets, and screw fastenings.

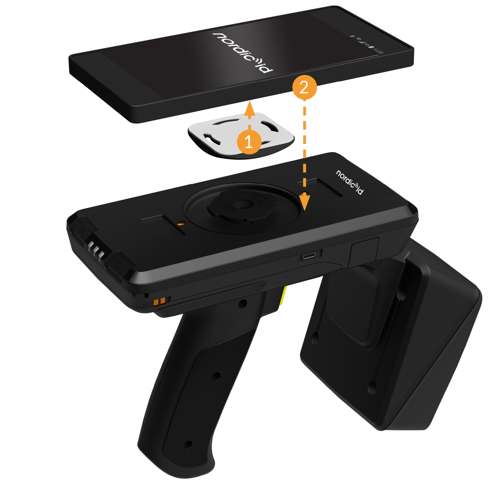

Quad lock® fastening
The Quad Lock fastening uses popular and easy to use Quad Lock fastening system. The Quad Lock fastening system provides strong and secure fastening and is suitable for different kind of host devices. Please visit Quad Lock web page for more information about different adapters.
Fastening of the host device on the Nordic ID EXA51e with the Quad Lock fastening system is easy. The first step is to attach a Quad Lock adapter on the host device. Second step is to fasten the host device on the Nordic ID EXA51e by attaching and locking the Quad Lock fastening system.

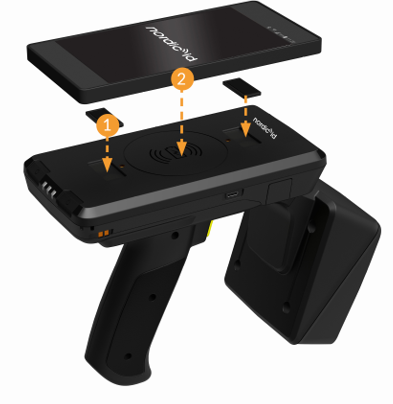

Magnet fastening
The magnet fastening is a tight but effortless option to fasten the host device on the Nordic ID EXA51e. Using magnet fastening is easy. The first step is to place the counter parts of magnets to the recesses located on the top cover of the Nordic ID EXA51e (Note! Protective/adhesive tape should be pointing outwards from the Nordic ID EXA51e). The second step is to remove protective tape from the counter parts of magnets. The third step is to place the host device on top of the Nordic ID EXA51e and ensure that the magnet counter parts are securely attached (adhesive) to the host device.

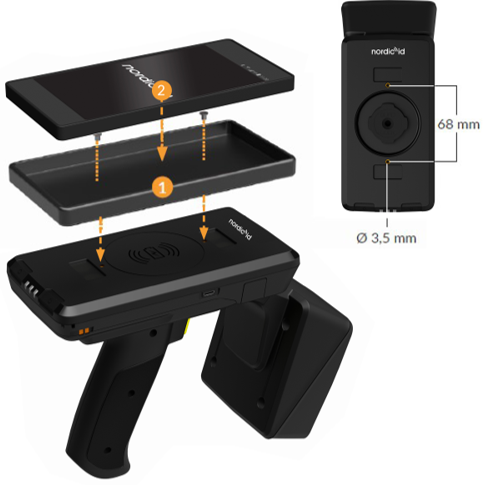

Screw fastening
The screw mounting is a robust option to mount a host device on the Nordic ID EXA51e. This option requires a protective case or cover for the host device which is screwed on the Nordic ID EXA51e. The first step is to screw the case/cover to screw holes of the Nordic ID EXA51e. The distance between the screw holes is 68mm and the diameter of each screw is 3.5mm. The second step is to place the host device into the case/cover.
