| UHF RFID |
| Frequency band | Global: ETSI 865 - 868 MHz and FCC/IC 902-928 MHz |
| Gain | 7.0 dBic |
| Beam Width (-3dB) | 80° |
| Polarization | RHCP |
| Input Impedance | 50 Ω |
| VSWR | < 1.5:1 |
| Maximum input power | 10 W (40 dBm) |
| Efficiency | 87 % |
| Connector | SMA female |
| SIZE AND WEIGHT |
| Dimensions | (W) 200 x (L) 260 x (H) 25 mm ((W) 7.9 x (L) 10.2 x (H) 1.0) |
| Weight | 438 g (15.4 oz) |
| ENVIRONMENT |
| Operating Temperature | -20°C to 55°C (-4°F to 130°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |

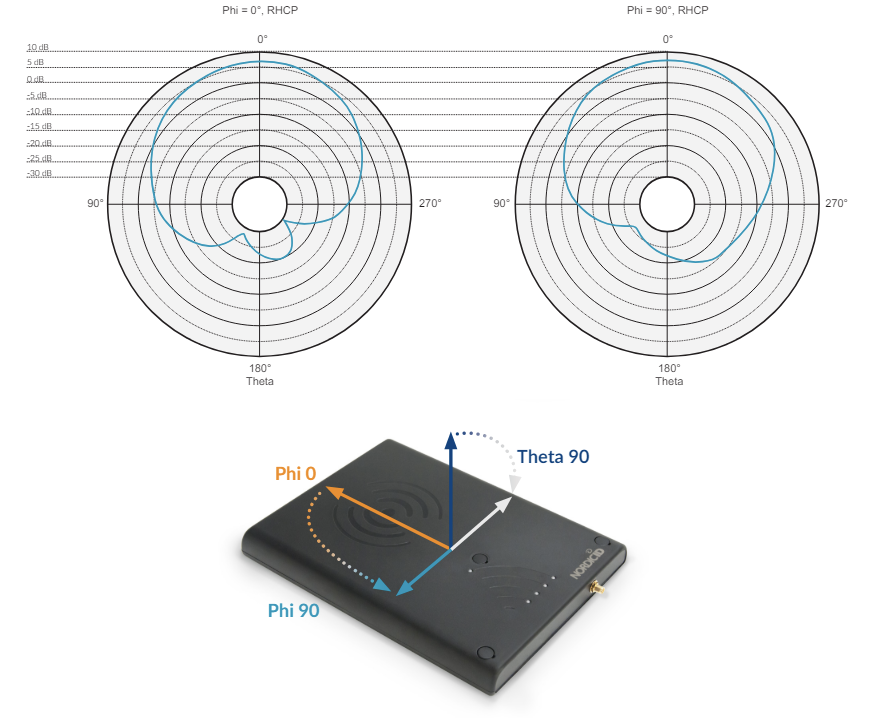

RFID RADIATION PATTERN

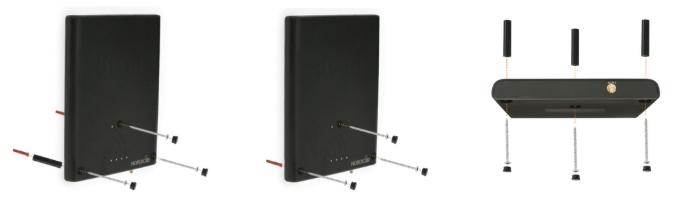

MOUNTING OPTIONS
