| UHF RFID |
| Frequency band | ETSI 865 – 868 MHz, FCC 902 – 928 MHz |
| Gain | 2 dBic |
| Beam Width (-3dB) | 100° |
| Polarization | RHCP |
| Input Impedance | 50 Ω |
| VSWR | < 1.5:1 |
| Maximum input power | 10W |
| Front-to-back Ratio | 6 dB |
| Connector | SMA Female connector (with 40 cm coaxial cable) |
| SIZE AND WEIGHT |
| Dimensions | (W) 150 x (L) 150 x (H) 6mm / (W) 5.9 x (L) 5.9 x 0.2 inch |
| Weight | 200g / 7.1 oz |
| ENVIRONMENT |
| Operating Temperature | -20°C to 55°C -4°F to 130°F |
| Storage Temperature | -40°C to 85°C -40°F to 185°F |

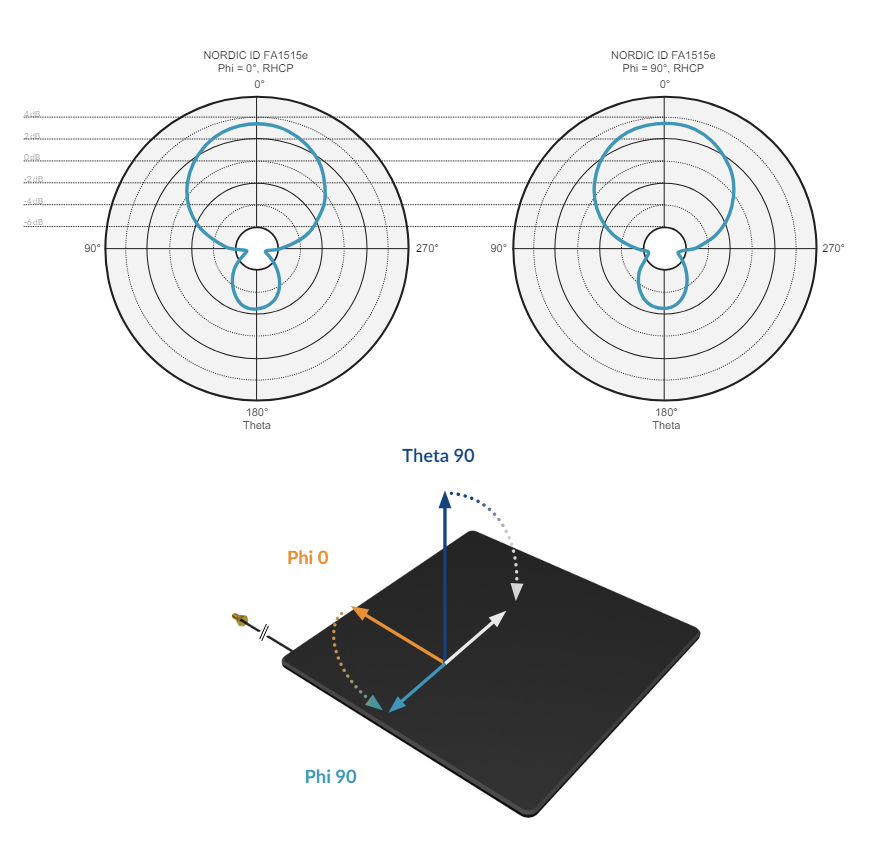

ANTENNA RADIATION PATTERN
