| UHF RFID |
| Frequency band | ETSU: 865 - 868MHz FCC: 902 - 928 MHz |
| Gain | -1dBic |
| Beam Width (-3dB) | 120/150° |
| Polarization | RHCP |
| Input Impedance | 50 Ω |
| VSWR | < 1.5:1 |
| Maximum input power | 2W |
| Front-to-back Ratio | 6 dB |
| Axial Ratio | 2 dB |
| Connector | RP SMA Female connector |
| SIZE AND WEIGHT |
| Dimensions | (W) 40 x (L) 83x (H) 20mm/ (W) 1.6 x (L) 3.3 x 0.8 inch |
| Weight | 26g /0.92 oz |
| ENVIRONMENT |
| Operating Temperature | -20°C - 55°C -4°F to 130°F |
| Storage Temperature | -40°C - 85°C -40°F to 185°F |
| Environmental Sealing | IP65 |

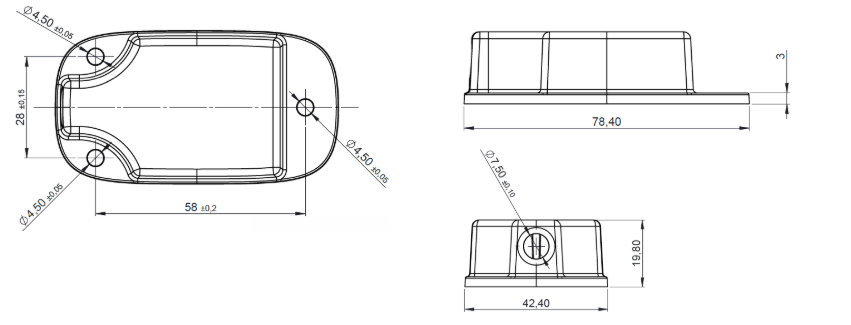

ANTENNA DIMENSIONS
(in millimeters)

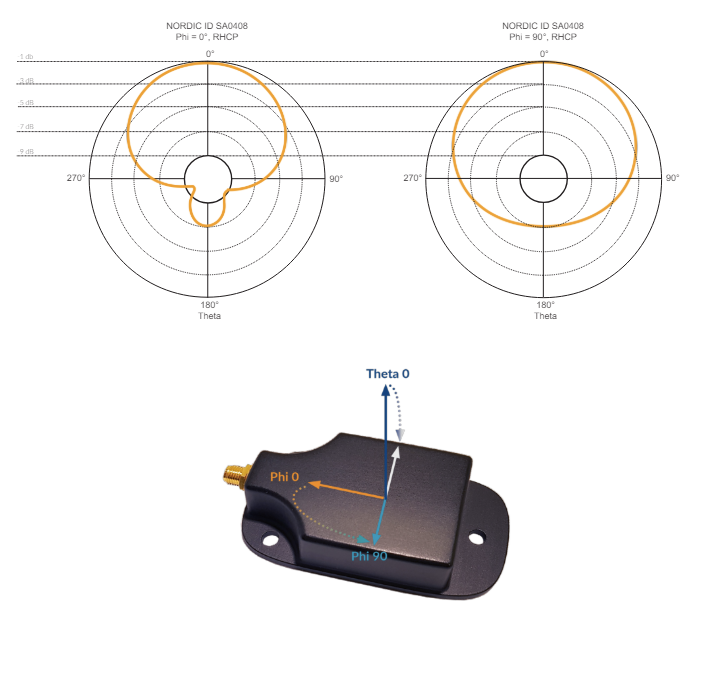

ANTENNA RADIATION PATTERN
