UHF RFID
Frequency865 MHz - 867 MHz or 902 MHz - 930 Mhz
Antenna Features
7.5 dBic RHCP Polarisation
Beam Width
65° / 65°
Input Impedance
50 Ω
VSWR
< 1.5:1
Power Requirements
Max 2W input power
Front-to-back Ratio
15 dB
Axial Ratio
< 1 dB
External Antenna Port
SMA Female connector
SIZE AND WEIGHT
Dimensions
250.00 mm (W) x 250.00 mm (H) x 28.90 mm (D)
Weight (kg)
0.56 kg
ENVIRONMENT
Operating Temperature
-20°C - 55°C
Storage Temperature
-40°C - 85°C
Ingress Protection Rating
IP65

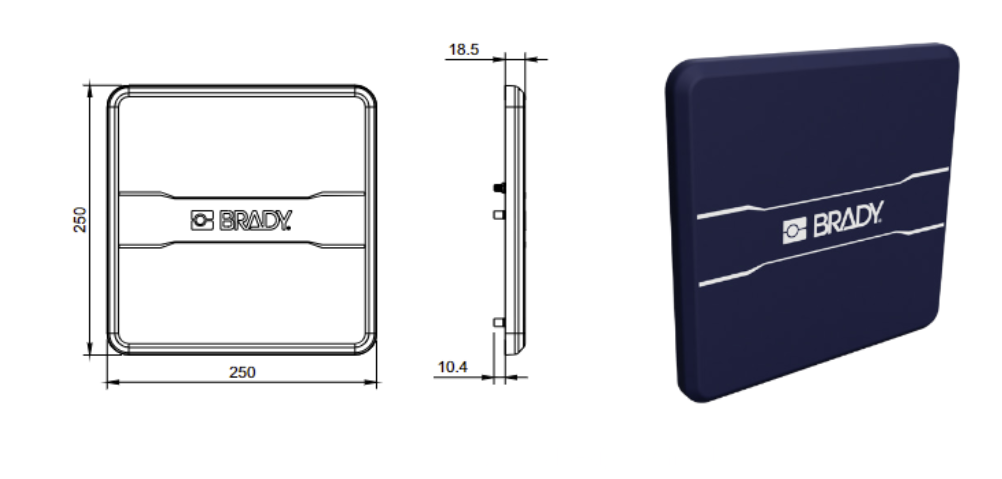

                    ANTENNA DIMENSION (MM)

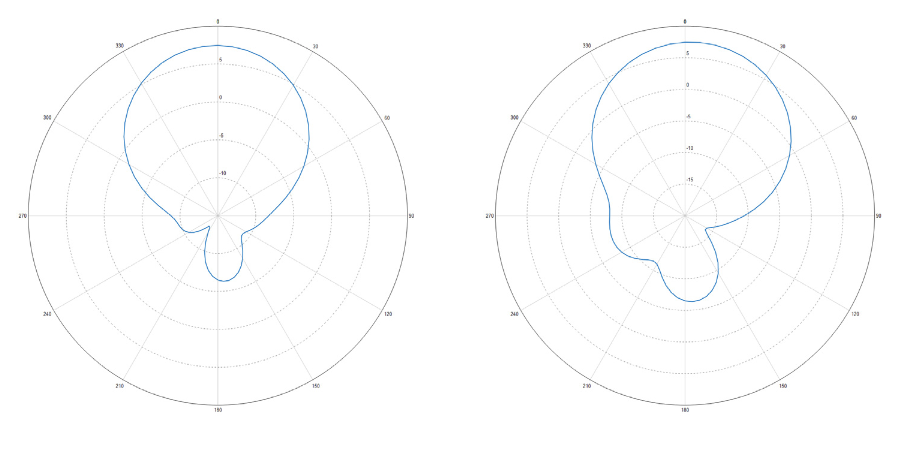

                                                                ANTENNA RADIATION PATTERN

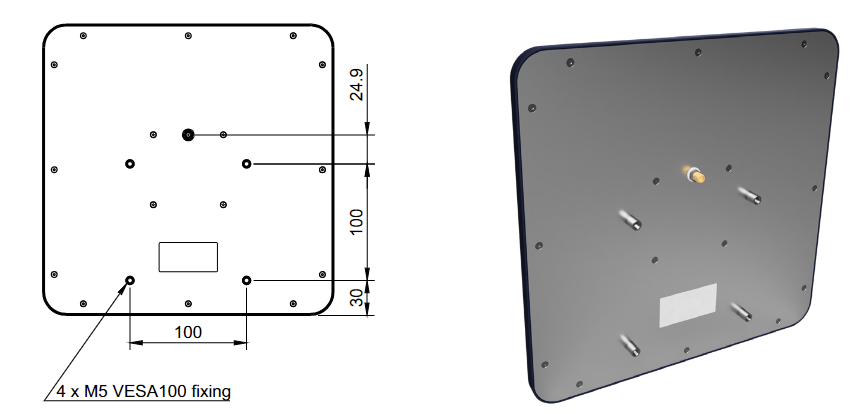

                    MOUNTING (VESA FIXING)








    Note about VESA Fixing points: the maximum thread depth
     is 7mm and the maximum allowed torque is 8Nm.
