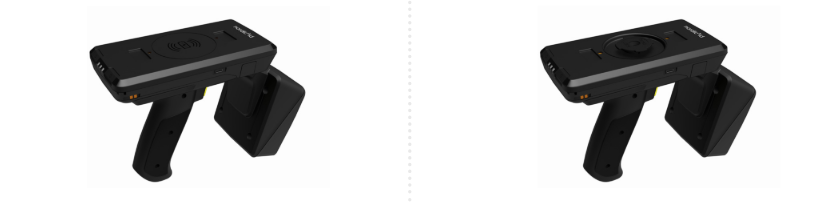

| PRODUCT VARIANTS |
WIRELESS CHARGING QUAD-LOCK
| RFID IDENTIFICATION |
| Supported standard | ISO 18000-63 (EPC Class 1 gen2v2) AES authentication in accordance with ISO/IEC 29167-10 supported |
| Frequency band | ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz |
| RF radiated power | ERP 2W/EIRP 3.3W |
| Antenna features | Software controlled antenna modes: linear (horizontal & vertical), circular and proximity Nominal reading distance: Linear polarization mode: 10 m/33 ft, circular polarization mode: 6 m/20 ft, proximity mode: down to 1 cm/0.4 inch |
| Max receive sensitivity | -77 dBm |
| Typical reading speed Up to | 1000 tags/s |
| BARCODE IDENTIFICATION |
| 2D imager | All major 1D barcodes and 2D codes High visibility LED aimer 2 character pre and post fixes, padding, replacement Enchanced aiming mode (automatic switching between scan line / aiming dot) Configurable scan alert sounds |
| PLATFORM |
| RFID | Nordic ID NUR2-1W reader module |
| Operating system | Embedded IoT platform |
| USER INTERFACE |
| Keys | Power and Unpair a Bluetooth device Trigger button |
| User feedback | 3 LEDs and buzzer |
| COMMUNICATION |
| Wireless PAN | Bluetooth 4.2 (Low Energy) Class 2 Supported profiles: GATT, HID |
| POWER |
| Battery | Rechargeable, removable Lithium-Ion battery pack 7000 mAh, 3.7V Up to 14 h in intensive use |
| Charging of EXA51 | Charging over cradle (0 to100 %) 5 h Charging over micro USB connector (0 to 100 %) 5–10 h |
| Charging of host device | Qi wireless charging supported (not available in Quad Lock version) Maximum charging power 5 W Charging from cradle via USB cable Adaptive charging power (4–7W) based on charge level of EXA51 battery |
| External power supply | AC adapter for desktop charger: input 100–240 VAC, 1 A, 50-60 Hz / output 5.2 VDC, 3 A, 15 W / Power adapter for EU, UK or US |
| SIZE AND WEIGHT |
| Dimensions | (H) 196 x (W) 83/91 x (D) 21/135 mm (H) 7.7 x (W) 3.3/3.6 x (D) 0.8/5.3 inch |
| Weight | 490g / 17.3 oz |
| DROP AND SHOCK |
| Drop and impact resistance | 1.5 m / 4.9 ft |
| ESD Contacts Air discharge | +/-4kVdc +/8kVdc |
| ENVIRONMENT |
| Temperature | Operating -20 to +55 °C -4 to +131°F Storage -20 to +60 °C -4 to +140 °F Charging 0 to +45 °C +32 to +113 °F |
| Relative humidity | 10% to 95% non-condensing |
| Fastening options | Magnets, screws or Quad Lock (not available in wireless charging version) |
| Environmental sealing | IP54 |
| Inbox content | Nordic ID EXA51e, counter parts of magnets, screws and Safety & Regulations guide |
