UHF RFID IDENTIFICATION

ISO Compliance Standards		ISO 18000-63 (EPC Class 1Gen2v2)
FrequencyETSI 865.6-867.6 MHz or FCC/IC 902-928 MHz
RF Radiated PowerMax. ERP 2 W (33dBm) / EIRP 3.3 W (35.2dBm)
Maximum Receive Sensitivity-85dBm
Reading SpeedUp to 1000 tags per second
Antenna Features
Gain 5dBi with software-controlled polarisation switching
BARCODE IDENTIFICATION
Bar Code Type
Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 DataBar, Interleaved 2 of 5, Codabar (NW-7), MSI, Plessey, Telepen, China Post, POSTNET, EAN/UPC, JAN-13, JAN-8, Industrial 2 of 5, ISBN-ISSN-ISMN, S-code, Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, PDF417, MicroPDF417, QR code, Aztec Runes, Chinese Sensible Code, Composite Code, Passport MRZ
USER INTERFACE

Device Indicators

Buzzer for sound indications, Power LED, Connection LED, Scan LED, Segmented LED bars
User Interface TypeButtons
CONNECTIVITY
Connectivity Options
Bluetooth 5.3 class 2, USB-C
PLATFORM

Operating System

Brady by Nordic ID IoT platform (2nd generation)
RFID Capabilities

UHF

SIZE AND WEIGHT
Weight (kg)
0.580 kg

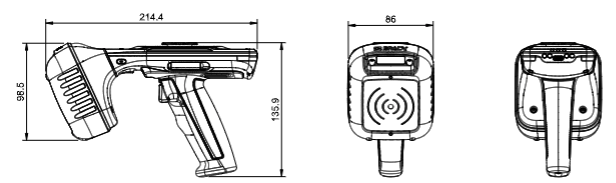

Dimensions
214.4 mm (W) x 98.5 mm (H) x 86 mm (D)
ENVIRONMENT
Ingress Protection RatingIP65
Operating Temperature-20°C - 55°C
Storage Temperature-20°C - 60°C
Charging Temperature Range (°C)0° - 45°C
Drop Test
Resistant to 1.8 metre drops
ESD
Contacts: +/-4kVdc, Air discharge: +/-8kVdc
Mounting Type
Quad Lock, Screws
POWER
Shipped With BatteryYes
Battery TypeLithium-ion Battery
How Is Battery Shipped

Shipped installed in equipment

Battery mAh Rating10050 mAh
Charging Times
Charging over cradle (0 - 100 %) 4 h, Charging over USB-C connector (0 - 100 %) 4–10 h




Article No.
Description
321710
Brady EXA81 RFID Reader EU
321711
Brady EXA81 RFID Reader US
321712
Brady EXA81 RFID Reader AU




Accesories


Article No.
Description
309995
HH83 - HH85 Desktop Charger Kit
310986Adapter QuickCharge3 USB-C kit EU/UK/US
311030
HH83 Desktop Charger Kit Spare Batt UK
311032
HH83 4-Bay Desktop Charger 4 Batt slots EU
311033
HH83 4-Bay Desktop Charger 4 Batt slots UK
320057
Brady HH85 Battery 10050mAh Pistol grip cover
321899
Quad lock Universal Adaptor for EXA31 and EXA81
