NOTE! Due to regulations, devices are delivered with empty battery.
Please fully charge your device before first use.


The Nordic ID HH83/HH85 can be charged via desktop or USB-C charger. The USB charger needs to have a USB-C connector and preferably support for Quick Charge 3.0.

Charging time from 0 – 100% via the desktop and Quick Charge 3.0 USB charger is about 4 hours for both Nordic ID HH83 Barcode and RFID ACD variants.

Due to its larger battery, charging time from 0 – 80% is about 4 hours for Nordic ID HH85 RFID ACD, and 6 hours to 100%.

The status LED on the unit shows the charging progress:

The status LED on the unit shows the charging progress:

n  red when battery level is below 15%

n  yellow when it’s between 15% and 90%

n  green when it’s above 90%

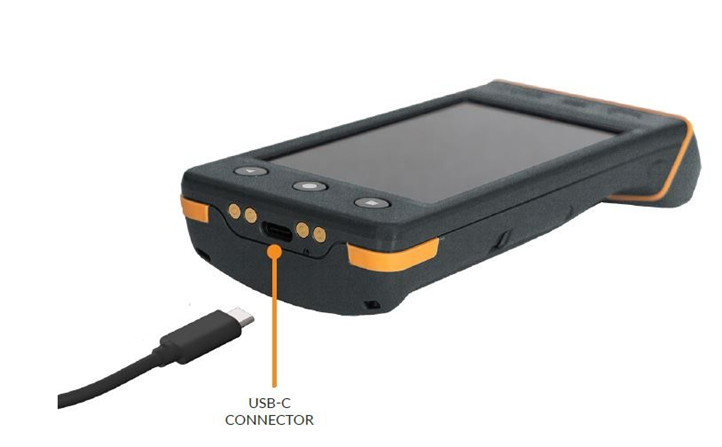

Charging of the Nordic ID HH83 via USB charger


NOTE! The USB-C and desktop chargers are sold separately by Nordic ID


Battery charging using desktop charger


Both the battery in the Nordic HH83 plus a spare battery can be charged simultaneously in the desktop charger. This means that when using the Nordic ID HH83 4-Bay Desktop Charger, four Nordic ID HH83 devices plus four extra batteries can be charged at the same time, i.e., eight batteries.

NOTE! that one Nordic ID HH85 with pistol grip and one spare battery with pistol grip cover cannot be charged in the same bay of a desktop charger.

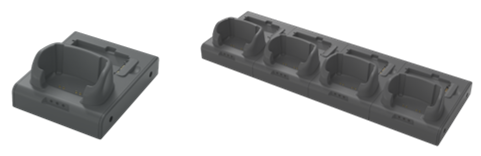

Nordic ID HH83 single Desktop Charger and 4-Bay Desktop Charger

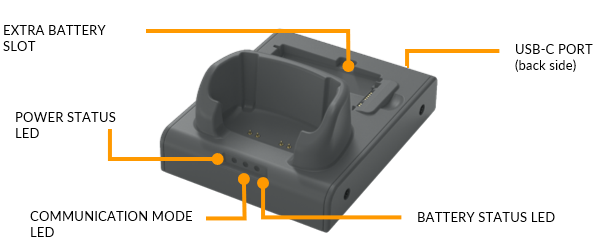

Features of Nordic ID HH83 Desktop Charger


The behavior (color) of the LEDs depends on how the main Nordic ID HH83/HH85 unit is being connected (using the USB-C port) to external devices or network and whether an extra battery is being charged or not:



  • Power status LED

n  Green when the desktop charger is connected to power



  • Communication mode LED

n  Off when there is nothing connected to USB-C port

n  Green when the Nordic ID HH83/85 unit is in client mode (e.g., connected to a computer via USB)

n  Blue when the unit is in host mode (e.g., connected to a network using USB to Ethernet adapter)

  • Extra battery status LED

n  Red when a Nordic ID HH83/HH85 battery is being charged

n  Green when a Nordic ID HH83/HH85 battery is fully charged
