WITH RESET BUTTON
The Reset button of Nordic ID FR22 contains the following functionalities, depending on how long the button is pressed and released:
• Boot into fastboot / bootloader
- Keep the Reset button pressed while powering up the Nordic ID FR22. o The Power and Connection LEDs will turn on green in this order. o Wait until the Connection LED lights on (it will take 5-10 seconds after you pressed the button) and then release the Reset button.
• Factory reset
- Keep the Reset button pressed while powering up the Nordic ID FR22. o The Power, Connection and Application LEDs will turn on green in this order. o Wait until the Application LED lights on (it will take 10-15 seconds after you pressed the button) and then release the Reset button

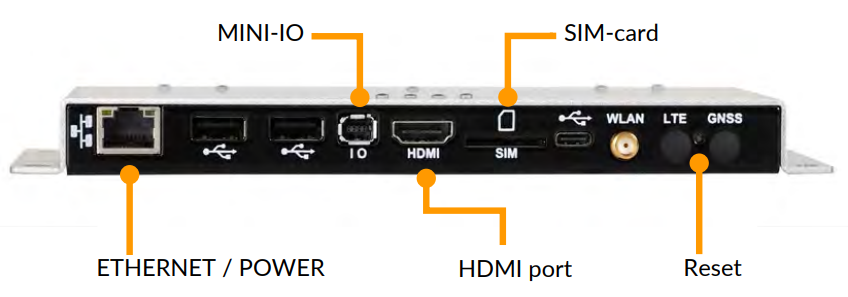

FR22

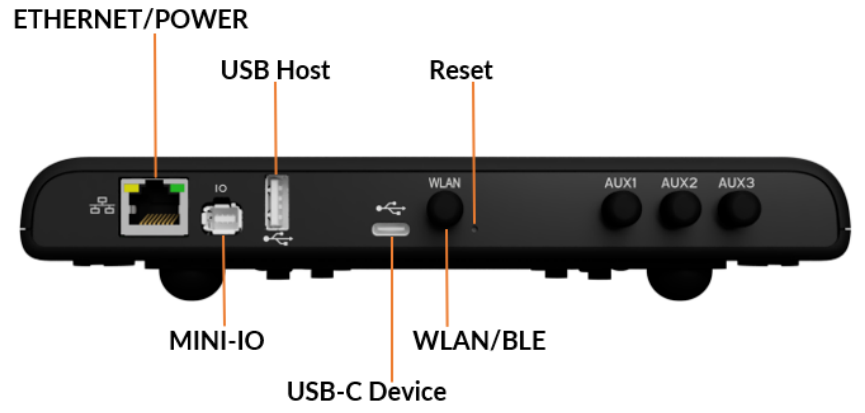

Sampo S3
FROM WEB UI
- Make sure the device has an internet connection
- Open the browser and enter the device's hostname or IP address in the address line of the browser
- Log in with the device credentials
user: admin
password: <see the device label>
- Go System > Settings > Factory reset
- Press the Factory reset-button
Factory reset takes a while, so please wait until the device has restarted succesfully.
