You can perform a factory reset from the WebUI or from the device itself.


From the WebUI

  1. Ensure that the device is connected to the internet.
  2. In the web browser on your PC, enter the device hostname or IP address.
  3. When prompted, enter the following credentials to log in to the WebUI:
    • user: admin
    • password: <see the device label>

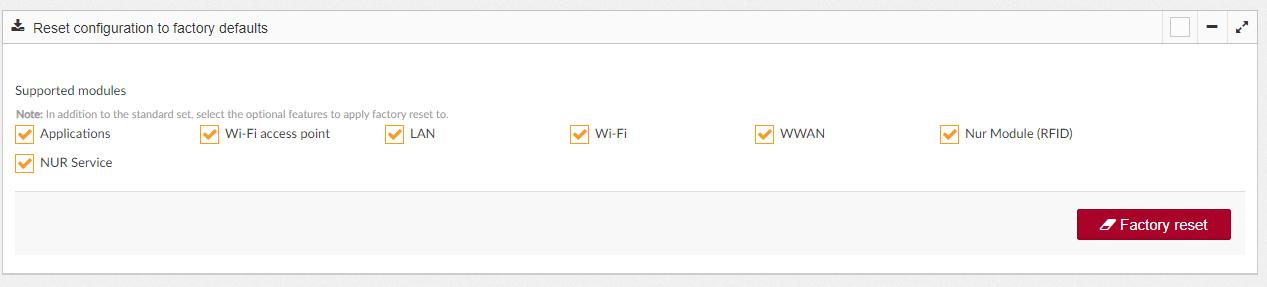

  4. In the WebUI, in the Import/Export Settings tab, select Reset configuration defaults.
  5. Select the modules you want to reset and click Factory reset.


From the device

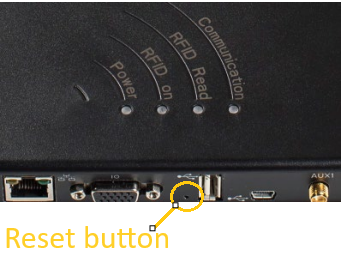

  1. Locate the reset button on the rear of the device.
  2. Press and hold the reset button. The Communication LED starts blinking red.
  3. When the RFID on LED lights up, release the reset button within 5 seconds.



NOTE! If the reset button stays pressed for more than 5 seconds after the RFID on LED is lit, the Communication LED starts blinking faster. Releasing the reset button at this time performs a normal device reboot.
